Thông tin chi tiết sản phẩm:
|
|
| Place of Origin: | CHINA |
|---|---|
| Hàng hiệu: | MTSCO |
| Chứng nhận: | ISO 9001 & PED & AD2000 |
| Model Number: | MTSCOSSCT19 |
|
Thanh toán:
|
|
| Minimum Order Quantity: | negotiable |
| Giá bán: | 5500-10000USD/TON |
| Packaging Details: | Iron Case / Plywood Case |
| Delivery Time: | 30 Days |
| Payment Terms: | T / T ; L / C |
| Supply Ability: | 300 Tons / Month |
|
Thông tin chi tiết |
|||
| Product: | multi-core tubes | Standard: | ASTM A269 / ASTM A213 Dual Standards Etc |
|---|---|---|---|
| Delivery Condition: | Soft / Hard | Type: | welded |
| Surface: | Bright Annealed / Pickled | used for: | measuring and monitoring systems |
| Điểm nổi bật: | coiled stainless tube,seamless stainless steel pipe |
||
Mô tả sản phẩm

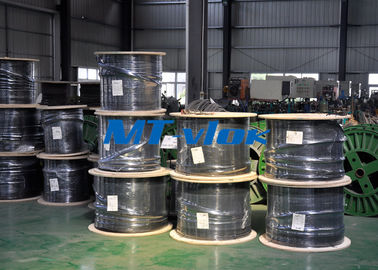

ASTM A269 TP316 / 316L Stainless Steel Welded Multi-core Tubing
Where the multi-core coiled tubing used ?
Mtsco’ s multi-core tubes are used for pneumatic and hydraulic remote control, measuring and monitoring systems. materials are ASTM TP316/ 316L, TP304/304L.
nditions.
| Ordering code number |
Tube size (O.D x Thickness x Core) |
Overall Diameter (.mm) |
Sheath Thickness (.mm) |
Bundle Weight (kg/M) |
Max Pressure (Bar) |
| HTD-1 | 6×1.0×1 | 8 | 1.0 | 0.15 |
Working:180Bar
Test:270Bar |
| HTD-2 | 6×1.0×2 | 20 | 2.0 | 0.60 | |
| HTD-3 | 6×1.0×3 | 21 | 2.0 | 0.75 | |
| HTD-4 | 6×1.0×4 | 24 | 2.0 | 0.82 | |
| HTD-5 | 6×1.0×5 | 25 | 2.0 | 0.90 | |
| HTD-6 | 6×1.0×6 | 27 | 2.0 | 1.04 | |
| HTD-7 | 6×1.0×7 | 27 | 2.0 | 1.15 | |
| HTD-8 | 6×1.0×8 | 32 | 2.2 | 1.40 | |
| HTD-9 | 8×1.0×1 | 10 | 1.0 | 0.28 | |
| HTD-10 | 8×1.0×2 | 24 | 1.8 | 0.89 | |
| HTD-11 | 8×1.0×3 | 26 | 2.0 | 1.12 | |
| HTD-12 | 8×1.0×4 | 28 | 2.0 | 1.33 | |
| HTD-13 | 8×1.0×5 | 31 | 2.0 | 1.67 | |
| HTD-14 | 8×1.0×6 | 34 | 2.0 | 2.00 | |
| HTD-15 | 8×1.0×7 | 34 | 2.0 | 2.15 | |
| HTD-16 | 8×1.0×8 | 40 | 2.2 | 2.60 | |
| HTD-17 | 10×1.0×1 | 13 | 1.0 | 0.34 | |
| HTD-18 | 10×1.0×2 | 28 | 1.8 | 1.18 | |
| HTD-19 | 10×1.0×3 | 31 | 2.0 | 1.60 | |
| HTD-20 | 10×1.0×4 | 34 | 2.0 | 1.97 | |
| HTD-21 | 10×1.0×5 | 37 | 2.0 | 2.20 | |
| HTD-22 | 10×1.0×6 | 40 | 2.0 | 2.40 | |
| HTD-23 | 10×1.0×7 | 40 | 2.0 | 2.52 | |
| HTD-24 | 10×1.0×8 | 48 | 2.5 | 3.20 | |
| HTD-25 | 12×1.0×1 | 14 | 1.0 | 0.41 | |
| HTD-26 | 12×1.0×2 | 34 | 2.0 | 1.35 | |
| HTD-27 | 12×1.0×3 | 36 | 2.0 | 1.96 | |
| HTD-28 | 12×1.0×4 | 39 | 2.0 | 2.37 | |
| HTD-29 | 12×1.0×5 | 43 | 2.0 | 2.70 | |
| HTD-30 | 12×1.0×6 | 47 | 2.0 | 3.00 | |
| HTD-31 | 12×1.0×7 | 47 | 2.0 | 3.14 | |
| HTD-32 | 12×1.0×8 | 55 | 2.5 | 3.90 |

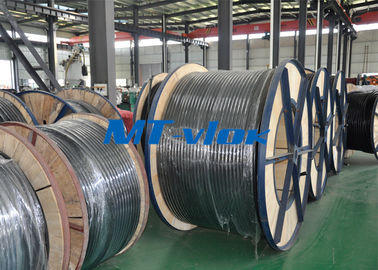

The multi-core tube consists of one to nine stainless steel tubes laid up spirally inside an extruded outer PVC sheath. For easy identification and protection purposes each individual tube is PVC sheathed in a different color. The extruded outer sheath is made of oil and seawater resistant, weatherproof, flame retardant, corrosion and acid resistant PVC. The multi-core tube (outer sheath) is continuously marked at every one meter throughout the entire length for easy installation. Heat shrinkable products provide complete water sealing, abrasion and corrosion protection under all conditions.
