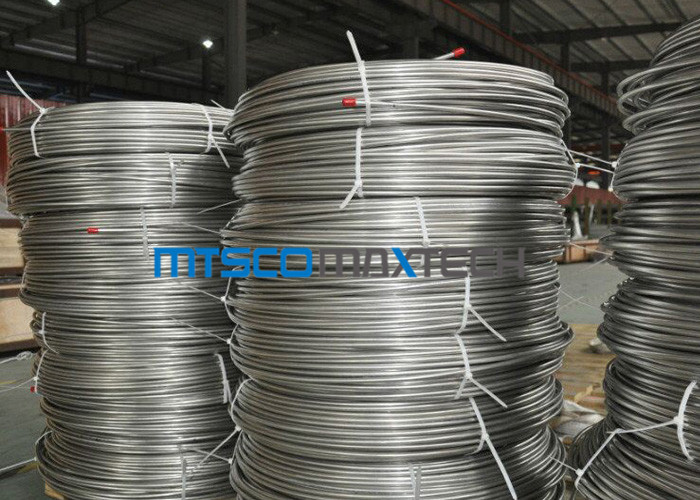

1 / 4 Inch ASTM A269 Stainless Steel Coiled Tubing For Oil / Gas Industry

Minimum Order Quantity : negotiable Giá bán : 5500-10000USD/TON
Packaging Details : Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Hàng hiệu: MTSCO
Chứng nhận: ISO 9001 & PED & AD2000 Model Number: MTSCONAT20

Thông tin chi tiết

Material: TP304 / 304L Surface: Bright Annealed
Technology: Cold Drawn / Cold Rolled Length: 6m Fixed Length
NDT: Eddy Current Or Hydraulic Test Inspection: 100%

Mô tả sản phẩm

1 / 4 Inch ASTM A269 TP304 / 304L Stainless Steel Seamless Coiled Tube For Oil And Gas



Material ASTM A269 Chemical Composition % Max
C Mn P S Si Cr Ni Mo N B Nb Ti
TP304 0.08 2 0.045 0.03 1 18.0-20.0 8.0-11.0 ^ ^ ^ . ^
TP304L 0.035 2 0.045 0.03 1 18.0-20.0 8.0-12.0 ^ ^ ^ ^
TP316 0.08 2 0.045 0.03 1 16.0-18.0 10.0-14.0 2.00-3.00 ^ ^ ^
TP316L 0.035 D 2 0.045 0.03 1 16.0-18.0 10.0-15.0 2.00-3.00 ^ ^ ^
TP321 0.08 2 0.045 0.03 1 17.0-19.0 9.0-12.0 ^ ^ ^ 5C -0.70
TP347 0.08 2 0.045 0.03 1 17.0-19.0 9.0-12.0     10C -1.10 ^



Material Heat treatment Temperure F (C) Min. Hardness
Brinell Rockwell
TP304 Solution 1900 (1040) 192HBW/200HV 90HRB
TP304L Solution 1900 (1040) 192HBW/200HV 90HRB
TP316 Solution 1900(1040) 192HBW/200HV 90HRB
TP316L Solution 1900(1040) 192HBW/200HV 90HRB
TP321 Solution 1900(1040) F 192HBW/200HV 90HRB
TP347 Solution 1900(1040) 192HBW/200HV 90HRB
OD, inch OD Tolerance inch(mm) WT Tolerance % Length Tolernace inch(mm)
+ -
≤ 1 / 2 ± 0.005 ( 0.13 ) ± 15 1 / 8 ( 3.2 ) 0
> 1 / 2 ~1 1 / 2 ± 0.005(0.13) ± 10 1 / 8 (3.2) 0
> 1 1 / 2 ~< 3 1 / 2 ± 0.010(0.25) ± 10 3 / 16 (4.8) 0
> 3 1 / 2 ~< 5 1 / 2 ± 0.015(0.38) ± 10 3 / 16 (4.8) 0
> 5 1 / 2 ~< 8 ± 0.030(0.76) ± 10 3 / 16 (4.8) 0
8~< 12 ± 0.040(1.01) ± 10 3 / 16 (4.8) 0
12~< 14 ± 0.050(1.26) ± 10 3 / 16 (4.8) 0



1 / 4 Inch ASTM A269 Stainless Steel Coiled Tubing For Oil / Gas Industry



1 . Our company has been dedicated to producing seamless coiled tubing since 2014 , owning complete producing technology and abundant managing experience .

2 . The raw material such as mother tube , round bar we use is from Chinese biggest and well-known steel mill : Walsin , Yongxing etc .

3 . We have advanced NDT equipments for the tests such as Eddy Current test , Ultrasonic test , Hydraulic test and so on .

4 . We have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , Lloyd’s , SGS , etc , also can be provided according to customers’ requirements .

5 . Iron case package which is strong and suitable for sea transportation is our main method to pack the tubing . And the economical packing method such as packed in bundles is also welcomed by some customers .

6 . The tolerance control is strictly accordance to produce standards . Our products are always satisfied with customers . Customers purchased our products created more profits .

7 . The surface condition is one of our main advantages : in order to meet different requirements for surface condition , we have annealing and pickling surface , bright annealing surface , polished surface etc .
