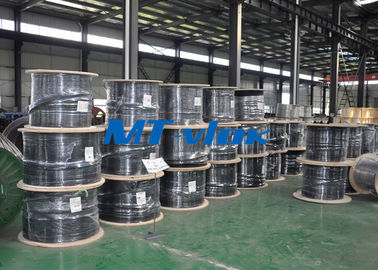

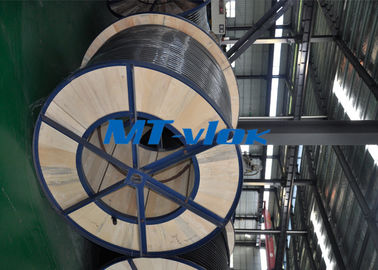

Multi - Core Stainless Steel Coiled Tubing ASTM A213 S30400 / S30403 Bright Annealed

Minimum Order Quantity : negotiable Giá bán : 5500-10000USD/TON
Packaging Details : Iron Case / Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin : CHINA Hàng hiệu : MTSCO
Chứng nhận : ISO 9001 & PED & AD2000 Model Number : MTSCOSSCT35

Thông tin chi tiết

Material: TP304 / S30400 Standard: ASTM A269 / ASTM A213 Dual Standards Etc
Delivery Condition: Soft / Hard Type: welded
Surface: Bright Annealed / Pickled Feature: flame retardant

Mô tả sản phẩm

ASTM A213 S30400 / S30403 Stainelss Steel Multi-core Coiled Tubing,



     The multi-core tube consists of one to nine stainless steel tubes laid up spirally inside an extruded outer PVC sheath. For easy identification and protection purposes each individual tube is PVC sheathed in a different color. The extruded outer sheath is made of oil and seawater resistant, weatherproof, flame retardant, corrosion and acid resistant PVC. The multi-core tube (outer sheath) is continuously marked at every one meter throughout the entire length for easy installation. Heat shrinkable products provide complete water sealing, abrasion and corrosion protection under all conditions.



ASTM A213 / A213M Chemical Composition :



Elements 304L(wt%) S30403 304(wt%) S30400 316L (wt%) S31603 316 (wt%) S31600
(C) Carbon, max 0.035 0.08 0.035 0.08
(Mn) Manganese, max 2 2 2 2
(P) Phosphorus, max 0.045 0.045 0.045 0.045
(S) Sulfur, max 0.03 0.03 0.03 0.03
(Si) Silicon, max 1 1 1 1
(Ni) Nickel 8.0 - 12.0 8.0 - 11.0 10.0 - 14.0 10.0 - 14.0
(Cr) Chromium 18.0 - 20.0 18.0 - 20.0 16.0 - 18.0 16.0 - 18.0
(Mo) Molybdenum N/A N/A 2.0 - 3.0 2.0 - 3.0
(Fe) Iron Bal. Bal. Bal. Bal.
(Cu) Copper N/A N/A N/A N/A
(N) Nitrogen N/A N/A N/A N/A



Ordering code number

Tube size

(O.D x Thickness x Core)

Overall Diameter

(.mm)

Sheath Thickness

(.mm)

Bundle Weight

(kg/M)

Max Pressure

(Bar)

HTD-1 6×1.0×1 8 1.0 0.15

Working:180Bar



Test:270Bar

HTD-2 6×1.0×2 20 2.0 0.60
HTD-3 6×1.0×3 21 2.0 0.75
HTD-4 6×1.0×4 24 2.0 0.82
HTD-5 6×1.0×5 25 2.0 0.90
HTD-6 6×1.0×6 27 2.0 1.04
HTD-7 6×1.0×7 27 2.0 1.15
HTD-8 6×1.0×8 32 2.2 1.40
HTD-9 8×1.0×1 10 1.0 0.28
HTD-10 8×1.0×2 24 1.8 0.89
HTD-11 8×1.0×3 26 2.0 1.12
HTD-12 8×1.0×4 28 2.0 1.33
HTD-13 8×1.0×5 31 2.0 1.67
HTD-14 8×1.0×6 34 2.0 2.00
HTD-15 8×1.0×7 34 2.0 2.15
HTD-16 8×1.0×8 40 2.2 2.60
HTD-17 10×1.0×1 13 1.0 0.34
HTD-18 10×1.0×2 28 1.8 1.18
HTD-19 10×1.0×3 31 2.0 1.60
HTD-20 10×1.0×4 34 2.0 1.97
HTD-21 10×1.0×5 37 2.0 2.20
HTD-22 10×1.0×6 40 2.0 2.40
HTD-23 10×1.0×7 40 2.0 2.52
HTD-24 10×1.0×8 48 2.5 3.20
HTD-25 12×1.0×1 14 1.0 0.41
HTD-26 12×1.0×2 34 2.0 1.35
HTD-27 12×1.0×3 36 2.0 1.96
HTD-28 12×1.0×4 39 2.0 2.37
HTD-29 12×1.0×5 43 2.0 2.70
HTD-30 12×1.0×6 47 2.0 3.00
HTD-31 12×1.0×7 47 2.0 3.14
HTD-32 12×1.0×8 55 2.5 3.90






Multi - Core Stainless Steel Coiled Tubing ASTM A213 S30400 / S30403 Bright Annealed
