Thông tin chi tiết sản phẩm:
|
|
| Place of Origin: | CHINA |
|---|---|
| Hàng hiệu: | MTSCO |
| Chứng nhận: | ISO 9001 & PED & AD2000 |
| Model Number: | MTSCOSSST27 |
|
Thanh toán:
|
|
| Minimum Order Quantity: | negotiable |
| Giá bán: | 4300-9800USD/TON |
| Packaging Details: | Iron Case / Plywood Case |
| Delivery Time: | 30 Days |
| Payment Terms: | T/T ; L/C |
| Supply Ability: | 300 Tons / Month |
|
Thông tin chi tiết |
|||
| Material: | TP347 / 347H | Length: | 6096MM |
|---|---|---|---|
| Type: | Seamless | Technology: | Cold Rolled |
| Test: | NDT Eddy Current Or Hydraulic Test | ||
| Điểm nổi bật: | Stainless Steel Seamless Tubing,ss Seamless Tubing |
||
Mô tả sản phẩm

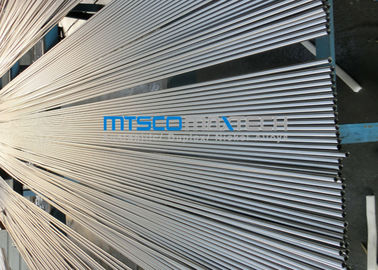

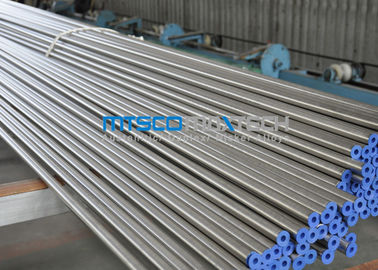

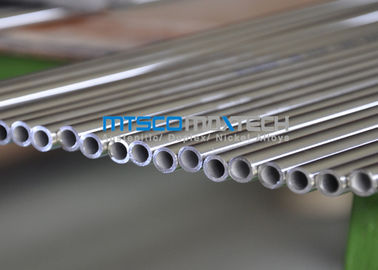

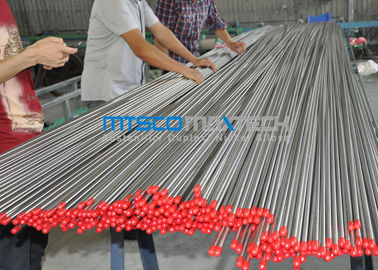

1 / 2 Inch ASTM A269 TP347 / 347H Stainless Steel Seamless Tube With Cold Rolled
| Item | Description | |
| Basic Information | Material Grade | TP304 , TP304L , TP304H , TP316 , TP316L , TP316Ti , TP309S , TP310S , TP321 , TP321H , TP347 , TP347H , S31803 , S32750 , S32205 etc |
| Outer Diameter | 3.18mm - 101.6mm | |
| Wall Thickness | 0.5mm - 20mm | |
| Length | Normally fixed length 6m , can as per customer’s requirement | |
| Standard | ASTM A213 ; ASTM A269 ; ASTM A312 ; ASTM A789 ; ASTM A790 etc. | |
| Process Method | Cold Drawn or Cold Rolled | |
| Industry & Advantage | Application | a) For fluid & gas transport |
| b) Structure & machining | ||
| c) Petrochemical | ||
| d) Environmental protection | ||
| e) Electricity | ||
| f) Instrument industry etc | ||
| Advantages | a) Superior surface finish | |
| b) Better mechanical property | ||
| c) More precise dimension | ||
| d) Perfect inspection method and inspection equipment | ||
| Terms & Conditions | Price Item | FOB , CFR , CIF or as negotiation |
| Payment | TT, LC or as negotiation | |
| Delivery Time | 30 working days after received your deposit ( Normally according to the order quantity ) | |
| Package | Iron case ; woven bag or as per customer’s requirement | |
| Quality Requirement | Mill Test Certificate will be supplied with shipment , Third Part Inspection is acceptable | |
| Quality | Test | NTD ( Ultrasonic test , Eddy Current test ) |
| Mechanical Test ( Tension Test , Flaring Test , Flattening Test , Hardness Test , Hydraulic test ) | ||
| Metal Test ( Metallographic Analysis , Impact Test - High / low temperature ) | ||
| Chemical Analysis ( Photoelectric Emission Spectroscopic ) | ||
| Market | Main Market | Europe , Middle East , Southeast Asia , South America etc |
Chemical Composition
| C(max) | Si(max) | Mn(max) | P(max) | S(max) | Cr | Ni | Mo | Ti | |
| TP304/1.4301 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10.5 | ||
| TP304L/1.4307 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
| TP304H/1.4948 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
| TP316/1.4401 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |
| TP316L/1.4404 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
| TP316Ti/1.4571 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.7>5x(C+N) |
| TP321/1.4541 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-12.0 | 0.7>5x(C+N) | |
| TP317L/1.4449 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 11.0-14.0 | 3.0-4.0 | |
| TP347H/1.4912 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-13.0 | ||
| TP309S/1.4833 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 22.0-24.0 | 12.0-15.0 | 0.75 | |
| TP310S/1.4845 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 24.0-26.0 | 19.0-22.0 | 0.75 |
MTSCO has 26 cold-drawing production lines. And the annual production capacity is 5000 tons, the annual GDP is more than 30 million USD.
1 . Seamless tube : small diameter seamless overlength coiled tubing , bright annealed tube , inside and outside polished tube , heat exchanger tube , U-bent tube , the products all adopt the most advanced technology , with 26 production lines .
2 . Seamless pipe : MTSCO has 8 production lines for stainless steel cold drawn pipe , 10 production lines for cold roll pipe .
3 . Other Products : Stainless steel welded pipe , flange and fitting are our relevant products , for providing our clients the supplied solutions of the pipeline projects .
