Thông tin chi tiết sản phẩm:
|
|
| Place of Origin: | CHINA |
|---|---|
| Hàng hiệu: | MTSCO |
| Chứng nhận: | ISO 9001 & PED & AD2000 |
| Model Number: | MTSCOSSIT29 |
|
Thanh toán:
|
|
| Minimum Order Quantity: | negotiable |
| Giá bán: | 4300-9800USD/TON |
| Packaging Details: | Iron Case / Plywood Case |
| Delivery Time: | 30 Days |
| Payment Terms: | T / T ; L / C |
| Supply Ability: | 300 Tons / Month |
|
Thông tin chi tiết |
|||
| Material: | TP347 / 347H | Type: | Seamless |
|---|---|---|---|
| Condition: | Soft / Hard | Surface: | Bright Annealed |
| Length: | 6400.8mm | Technology: | Cold Rolled |
| Điểm nổi bật: | Cold Drawn Tubing,stainless steel instrumentation tubing |
||
Mô tả sản phẩm

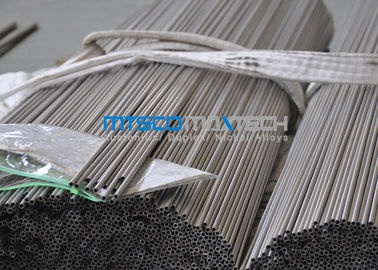

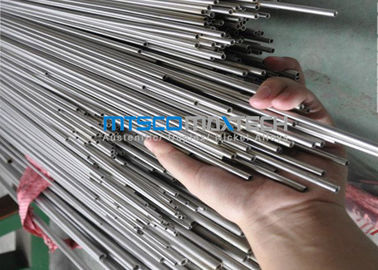

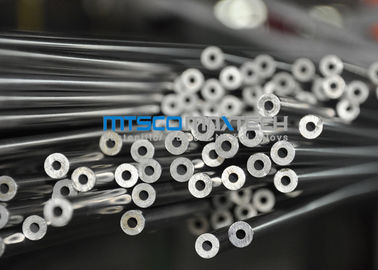

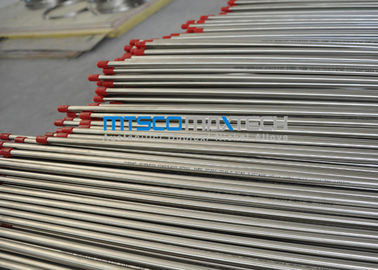

TP347 / 347H Cold Rolled Stainless Steel Instrument Tubing For Gas Industry
Stainless steel seamless bright annealed tube’s final surface is polished and bright annealed . And the polished grade is includes 180# , 320# , 400# , 600# , 800# . According to standard very strictly , tubes which produced by us always have correct OD and WT tolerance . At instrument industry , bright annealed tubes have their own important position .
| Industry & Advantage | Application | a) General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear ) |
| b) Fluid , gas and oil transport | ||
| c) Pressure and heat transmission | ||
| d) Construction and ornament | ||
| e) Boiler and heat exchangers | ||
| f) Decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium ) | ||
| Advantages | a) Superior surface finish | |
| b) Better mechanical property | ||
| c) More precise dimension | ||
| d) Perfect inspection method and inspection equipment |
Chemical Composition :
| Material | ASTM A269 Chemical Composition % Max | ||||||||||
| C | Mn | P | S | Si | Cr | Ni | Mo | N B | Nb | Ti | |
| TP304 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ^ | ^ | ^. | ^ |
| TP304L | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-12.0 | ^ | ^ | ^ | ^ |
| TP316 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | ^ | ^ | ^ |
| TP316L | 0.035 D | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-15.0 | 2.00-3.00 | ^ | ^ | ^ |
| TP321 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | ^ | ^ | ^ | 5C -0.70 |
| TP347 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | 10C -1.10 | ^ | ||
Chemical Composition:
| C(max) | Si(max) | Mn(max) | P(max) | S(max) | Cr | Ni | Mo | Ti | |
| TP304/1.4301 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10.5 | ||
| TP304L/1.4307 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
| TP304H/1.4948 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
| TP316/1.4401 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |
| TP316L/1.4404 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
| TP316Ti/1.4571 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.7>5x(C+N) |
| TP321/1.4541 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-12.0 | 0.7>5x(C+N) | |
| TP317L/1.4449 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 11.0-14.0 | 3.0-4.0 | |
| TP347H/1.4912 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-13.0 | ||
| TP309S/1.4833 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 22.0-24.0 | 12.0-15.0 | 0.75 | |
| TP310S/1.4845 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 24.0-26.0 | 19.0-22.0 | 0.75 |
