TP321 / 321H Precision Stainless Tubing , Seamless Steel Tube For Oil Industry

Minimum Order Quantity : negotiable Giá bán : 6000-12000USD/TON
Packaging Details : Iron Case / Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Hàng hiệu: MTSCO
Chứng nhận: ISO 9001 & PED & AD2000 Model Number: MTSCOPSST31

Thông tin chi tiết

Material: Stainless Steel 300 Series , 1.4307 , 1.4404 , 1.4401 End Cut: Plain End ( PE ) / Bevel End ( BE )
Delivery Condition: Soft / Hard NDT: Eddy Current Or Hydraulic Test
Inspection: 100% Surface: Annealing

Mô tả sản phẩm

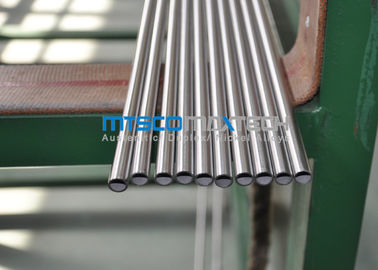

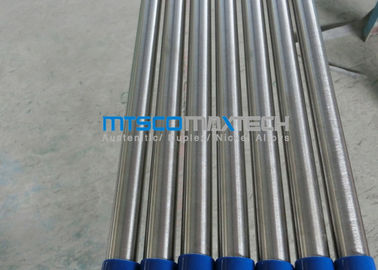

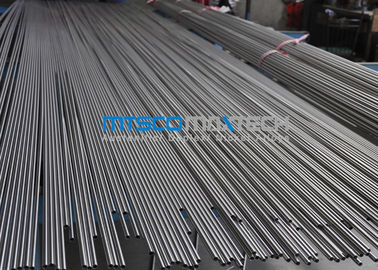

TP321 / 321H Stainless Steel Precision Bright Annealed Tubing For Oil Industry



Chemical Composition



  C(max) Si(max) Mn(max) P(max) S(max) Cr Ni Mo Ti
TP304/1.4301 0.080 1.00 2.00 0.045 0.030 18.0-20.0 8.0-10.5
TP304L/1.4307 0.035 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP304H/1.4948 0.04-0.10 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP316/1.4401 0.080 1.00 2.00 0.045 0.030 16.0-18.0 11.0-14.0 2.0-3.0
TP316L/1.4404 0.035 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0
TP316Ti/1.4571 0.080 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0 0.7>5x(C+N)
TP321/1.4541 0.080 1.00 2.00 0.045 0.030 17.0-19.0 9.0-12.0   0.7>5x(C+N)
TP317L/1.4449 0.080 1.00 2.00 0.045 0.030 18.0-20.0 11.0-14.0 3.0-4.0
TP347H/1.4912 0.04-0.10 1.00 2.00 0.045 0.030 17.0-19.0 9.0-13.0
TP309S/1.4833 0.080 1.00 2.00 0.045 0.030 22.0-24.0 12.0-15.0 0.75
TP310S/1.4845 0.080 1.00 2.00 0.045 0.030 24.0-26.0 19.0-22.0 0.75


Test :

1 . NTD ( Ultrasonic test , Eddy Current test )
2 . Mechanical Test ( Tension Test , Flaring Test , Flattening Test , Hardness Test , Hydraulic test )
3 . Metal Test ( Metallographic Analysis , Impact Test-High / low temperature )
4 . Chemical Analysis ( Photoelectric Emission Spectroscopic )



Product Description



Outer Diameter 3.18-101.6mm
Wall Thickness 0.5-20mm
NPS 1/8"-24"
Schedule 5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S
Material Grade 304/304L/316/316L/321/309S/310S, etc
Standard ASTM A269, ASTM A312, etc
Application used in Fluid and Gas Transport, Structure and Machining,etc
Certificates ISO9001:2008, PED, BV
Process Method Cold Drawn/ Cold Rolled
Surface Finish Annealed/ Polished
Package Woven bag for each piece, then packed in seaworthy wooden cases
Delivery Time 20-60 Days after receiving the deposit (Normally according to the order quantity)
Price Item FOB, CIF or as negotiation
Payment T/T(30% in advance, 70% against the BL Copy) or as negotiation
Quality Requirement Mill Test Certificate will be supplied with shipment, Third Part Inspection is acceptable
Main Market Europe, Middle East, Southeast Asia, South America, etc



Main Market :

MTSCO tubes main market include Europe , Middle East , Southeast Asia , South America etc .

   Precision stainless steel tubing can used some industries. Such as petroleum industry , chemical enterprise industry , superheater boiler industry , heat exchanger industry etc . Also can be used in ship industry , construction and ornament : Escalator , Elevator , Doors Production tools , Kitchen appliances , Freezers , Cold rooms etc .



MTSCO has the most advanced technology — The floating plug drawing technology which are used in Korea , and equipped with the most environmentally process — Bright annealing process . So our bright annealed precision tube produce technology make us can produce 300 tons high precision tubes every months .
