Thông tin chi tiết sản phẩm:
|
|
| Place of Origin: | CHINA |
|---|---|
| Hàng hiệu: | MTSCO |
| Chứng nhận: | ISO 9001 & PED & AD2000 |
| Model Number: | MTSCOSSCT49 |
|
Thanh toán:
|
|
| Minimum Order Quantity: | negotiable |
| Giá bán: | 5500-10000USD/TON |
| Packaging Details: | Iron Case |
| Delivery Time: | 30 Days |
| Payment Terms: | T / T ; L / C |
| Supply Ability: | 300 Tons / Month |
|
Thông tin chi tiết |
|||
| Material: | 300 Series | Technology: | Cold rolled |
|---|---|---|---|
| Condition: | Soft / Hard | Test: | 100 % Hydraulic Test |
| Length: | 100 m / coil | ||
| Điểm nổi bật: | stainless steel coil pipe,seamless stainless steel pipe |
||
Mô tả sản phẩm

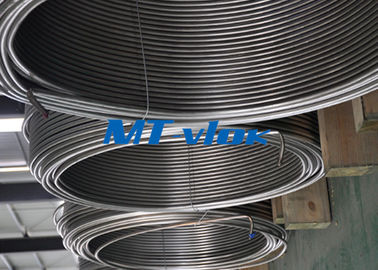

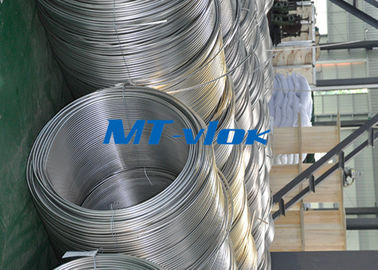

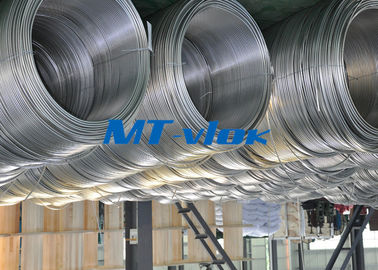

TP316 / 316L Stainless Steel Welded Super Long Coiled Tube For Petrochemical Industry
Where the coiled tubing used ?
1 . Control tubing in oil and gas well
2 . Instrument tubing
3 . Chemicl injection tubing line
4 . Pre-insulated tubing
5 . Electric heating or steam heating tubing line
6 . Hater tubing line
| C(max) | Si(max) | Mn(max) | P(max) | S(max) | Cr | Ni | Mo | Ti | |
| TP304/1.4301 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10.5 | ||
| TP304L/1.4307 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
| TP304H/1.4948 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
| TP316/1.4401 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |
| TP316L/1.4404 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
| TP316Ti/1.4571 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.7>5x(C+N) |
| TP321/1.4541 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-12.0 | 0.7>5x(C+N) | |
| TP317L/1.4449 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 11.0-14.0 | 3.0-4.0 | |
| TP347H/1.4912 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-13.0 | ||
| TP309S/1.4833 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 22.0-24.0 | 12.0-15.0 | 0.75 | |
| TP310S/1.4845 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 24.0-26.0 | 19.0-22.0 | 0.75 |
Application
a) For fluid & gas transport
b) Structure & machining
c) Petrochemical
d) Environmental protection
e) Electricity
f) Instrument industry etc
Advantages
a) Superior surface finish
b) Better mechanical property
c) More precise dimension
d) Perfect inspection method and inspection equipment
Specifications :
| DN | NPS(Inch) | D(mm) | SCH5S | SCH10S | SCH40S | STD | SCH40 | SCH80 | XS | SCH80S | SCH160 | XXS |
| 6 | 1/8 | 10.30 | - | 1.24 | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 | 2.41 | - | - |
| 8 | 1/4 | 13.70 | - | 1.65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | 3.02 | - | - |
| 10 | 3/8 | 17.10 | - | 1.65 | 2.31 | 2.31 | 2.31 | 3.20 | 3.20 | 3.20 | - | - |
| 15 | 1/2 | 21.30 | 1.65 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 3.73 | 4.78 | 7.47 |
| 20 | 3/4 | 26.70 | 1.65 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 3.91 | 5.56 | 7.82 |
| 25 | 1 | 33.40 | 1.65 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 4.55 | 6.35 | 9.09 |
| 32 | 1 1/4 | 42.20 | 1.65 | 2.77 | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 | 4.85 | 6.35 | 9.70 |
| 40 | 1 1/2 | 48.30 | 1.65 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 5.08 | 7.14 | 10.15 |
| 50 | 2 | 60.30 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 8.74 | 11.07 |
| 65 | 2 1/2 | 73.00 | 2.11 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 7.01 | 9.53 | 14.02 |
| 80 | 3 | 88.90 | 2.11 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 7.62 | 11.13 | 15.24 |
| 90 | 3 1/2 | 101.60 | 2.11 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 8.08 | - | - |
| 100 | 4 | 114.30 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.56 | 13.49 | 17.12 |
| 125 | 5 | 141.30 | 2.77 | 3.40 | 6.55 | 6.55 | 6.55 | 9.53 | 9.53 | 9.53 | 15.88 | 19.05 |
| 150 | 6 | 168.30 | 2.77 | 3.40 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 10.97 | 18.26 | 21.95 |
| 200 | 8 | 219.10 | 2.77 | 3.76 | 8.18 | 8.18 | 8.18 | 12.70 | 12.70 | 12.70 | 23.01 | 22.23 |
| 250 | 10 | 273.10 | 3.40 | 4.19 | 9.27 | 9.27 | 9.27 | 15.09 | 12.70 | 12.70 | 28.58 | 25.40 |
