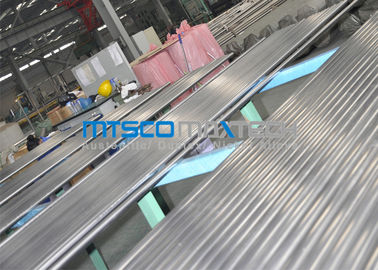

ASTM A249 TP347 / 347H ERW Stainless Steel Welded Tube For Boiler , 100% PMI Test

Thông tin chi tiết sản phẩm:
Place of Origin: CHINA
Hàng hiệu: MTSCO
Chứng nhận: ISO 9001 & PED & AD2000
Model Number: MTSCOSSWT30
Thanh toán:
Minimum Order Quantity: negotiable
Giá bán: 2500-12000USD/TON
Packaging Details: Plywood Case / Bundles
Delivery Time: 25 Days
Payment Terms: T / T ; L / C
Supply Ability: 500 Tons / Month

Thông tin chi tiết

Material: TP347 / 347H, 300 Series Stainless Steel Surface: 320 # Or 400 # Outside Polished
Delivery Condition: Soft / Hard Type: Welded
Process Method: ERW , EFW Etc PMI Test: 100%

Mô tả sản phẩm

ASTM A249 TP347 / 347H ERW Stainless Steel Welded Tube For Boiler



   MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc . In order to facilitate customers , we have welded pipes and tubes too . MTSCO has the most advanced producing and testing equipment . Our products are always satisfied with customers . Customers purchased our products created more profits .



ASTM A249 Standard :



Size OD Nominal Wall Outside Diameter Length Wall
1/2" (12.7) 0.065" (1.65)/0.049" (1.25) +/-0.005 (0.13) +1/8" (3.18) - 0 +/-10.0%
3/4" (19.1) 0.065" (1.65)/0.049" (1.25) +/-0.005 (0.13) +1/8" (3.18) - 0 +/-10.0%
1" (25.4) 0.065" (1.65)/0.049" (1.25) +/-0.005 (0.13) +1/8" (3.18) - 0 +/-10.0%
1-1/2" (38.1) 0.065" (1.65)/0.049" (1.25) +/-0.008" (0.20) +1/8" (3.18) - 0 +/-10.0%
2" (50.8) 0.065" (1.65)/0.049" (1.25) +/-0.008" (0.20) +1/8" (3.18) - 0 +/-10.0%
2-1/2" (63.5) 0.065" (1.65) +/-0.010" (0.25) +1/8" (3.18) - 0 +/-10.0%
3" (76.2) 0.065" (1.65) +/-0.010" (0.25) +1/8" (3.18) - 0 +/-10.0%
4" (101.6) 0.083" (2.11) +/-0.015" (0.38) +1/8" (3.18) - 0 +/-10.0%
6" (152.4) 0.083" (2.11) +/-0.030" (0.76) +1" (25.4) - 0 +/-10.0%
6" (152.4) 0.109" (2.77) +/-0.030" (0.76) +1" (25.4) - 0 +/-10.0%
8" (203.2) 0.109" (2.77) +0.061" (1.55)/-0.031" (0.79) +1" (25.4) - 0 +/-10.0%



Application :



a) For fluid and gas transport

b) Structure and machining

c) Heat exchanger pipes etc



Chemical Composition



  C(max) Si(max) Mn(max) P(max) S(max) Cr Ni Mo Ti
TP304/1.4301 0.080 1.00 2.00 0.045 0.030 18.0-20.0 8.0-10.5
TP304L/1.4307 0.035 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP304H/1.4948 0.04-0.10 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP316/1.4401 0.080 1.00 2.00 0.045 0.030 16.0-18.0 11.0-14.0 2.0-3.0
TP316L/1.4404 0.035 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0
TP316Ti/1.4571 0.080 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0 0.7>5x(C+N)
TP321/1.4541 0.080 1.00 2.00 0.045 0.030 17.0-19.0 9.0-12.0   0.7>5x(C+N)
TP317L/1.4449 0.080 1.00 2.00 0.045 0.030 18.0-20.0 11.0-14.0 3.0-4.0
TP347H/1.4912 0.04-0.10 1.00 2.00 0.045 0.030 17.0-19.0 9.0-13.0
TP309S/1.4833 0.080 1.00 2.00 0.045 0.030 22.0-24.0 12.0-15.0 0.75
TP310S/1.4845 0.080 1.00 2.00 0.045 0.030 24.0-26.0 19.0-22.0 0.75



ASTM A249 TP347 / 347H ERW Stainless Steel Welded Tube For Boiler , 100% PMI Test





Stanard Wire Gauge ( Fomerly Imperial Wire Gauge ) SWG
SWG Wall Thickness SWG Wall Thickness
0 0.324 8.23 21 0.032 0.81
1 0.3 7.62 22 0.028 0.71
2 0.276 7.01 23 0.024 0.61
3 0.252 6.4 24 0.022 0.56
4 0.232 5.89 25 0.02 0.51
5 0.212 5.38 26 0.018 0.46
6 0.192 4.88 27 0.0164 0.42
7 0.176 4.47 28 0.0148 0.38
8 0.16 4.06 29 0.0136 0.35
9 0.144 3.66 30 0.0124 0.31
10 0.128 3.25 31 0.0116 0.29
11 0.116 2.95 32 0.0108 0.27
12 0.104 2.64 33 0.01 0.25
13 0.092 2.34 34 0.0092 0.23
14 0.08 2.03 35 0.0084 0.21
15 0.072 1.83 36 0.0076 0.19
16 0.064 1.63 37 0.0068 0.17
17 0.056 1.42 38 0.006 0.15
18 0.048 1.22 39 0.0052 0.13
19 0.04 1.02 40 0.0048 0.12
20 0.036 0.91
