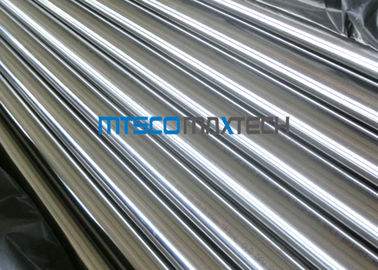

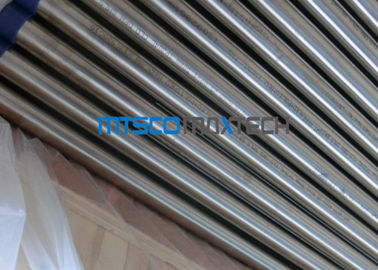

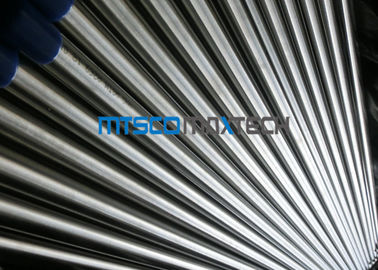

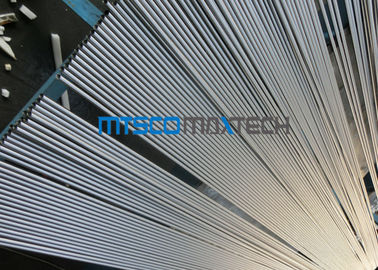

18BWG TP347 / 347H Bright Annealed Tube , Cold Drawn Seamless Steel Tube

Minimum Order Quantity : negotiable Giá bán : 6000-12000USD/TON
Packaging Details : Iron Case / Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin : CHINA Hàng hiệu : MTSCO
Chứng nhận : ISO 9001 & PED & AD2000 Model Number : MTSCOBAT42

Thông tin chi tiết

Material: TP347 / 347H/TP309S / 310S etc Surface: Bright Annealed
Technology: Cold Drawn Standards: ASTM A269 / A213
Delivery Conditions: Soft / Hard Inspection: 100%

Mô tả sản phẩm

ASTM A213 / ASME SA213 18BWG TP347 / 347H Stainless Steel Bright Annealed Welded Tube





Item Description
Basic Information Material Grade TP304 , TP304L , TP304H , TP316 , TP316L , TP316Ti , TP309S , TP310S , TP321 , TP321H , TP347 , TP347H , S31803 , S32750 , S32205 etc
Outer Diameter 3.18-101.6mm
Wall Thickness 0.5-20mm
Length Normally fixed length 6m , can as per customer’s requirement
Standard ASTM A213 ; ASTM A269 ; ASTM A312 ; ASTM A789 ; ASTM A790 ect .
Process Method Cold Drawn or Cold Rolled



Where can be used ?

1 . General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear
2 . Fluid , gas and oil transport
3 . Pressure and heat transmission
4 . Construction and ornament
5 . Boiler heat exchangers
6 . Decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium ) boiler , auto parts , medical equipment , building materials , food industry



Chemical Composition



  C(max) Si(max) Mn(max) P(max) S(max) Cr Ni Mo Ti
TP304/1.4301 0.080 1.00 2.00 0.045 0.030 18.0-20.0 8.0-10.5
TP304L/1.4307 0.035 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP304H/1.4948 0.04-0.10 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP316/1.4401 0.080 1.00 2.00 0.045 0.030 16.0-18.0 11.0-14.0 2.0-3.0
TP316L/1.4404 0.035 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0
TP316Ti/1.4571 0.080 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0 0.7>5x(C+N)
TP321/1.4541 0.080 1.00 2.00 0.045 0.030 17.0-19.0 9.0-12.0   0.7>5x(C+N)
TP317L/1.4449 0.080 1.00 2.00 0.045 0.030 18.0-20.0 11.0-14.0 3.0-4.0
TP347H/1.4912 0.04-0.10 1.00 2.00 0.045 0.030 17.0-19.0 9.0-13.0
TP309S/1.4833 0.080 1.00 2.00 0.045 0.030 22.0-24.0 12.0-15.0 0.75
TP310S/1.4845 0.080 1.00 2.00 0.045 0.030 24.0-26.0 19.0-22.0 0.75



18BWG TP347 / 347H Bright Annealed Tube , Cold Drawn Seamless Steel Tube



Birmingham Wire Gauge BWG
  Wall Thickness   Wall Thickness
BWG IN MM BWG IN MM
0 0.340 8.64 19 0.042 1.07
1 0.300 7.62 20 0.035 0.89
2 0.284 7.21 21 0.032 0.81
3 0.259 6.58 22 0.028 0.71
4 0.238 6.05 23 0.025 0.64
5 0.220 5.59 24 0.022 0.56
6 0.203 5.16 25 0.020 0.51
7 0.180 4.57 26 0.018 0.46
8 0.165 4.19 27 0.016 0.41
9 0.148 3.76 28 0.014 0.36
10 0.134 3.40 29 0.013 0.33
11 0.120 3.05 30 0.012 0.30
12 0.109 2.77 31 0.010 0.25
13 0.095 2.41 32 0.009 0.23
14 0.083 2.11 33 0.008 0.20
15 0.072 1.83 34 0.007 0.18
16 0.065 1.65 35 0.005 0.13
17 0.058 1.47 36 0.004 0.10
18 0.049 1.24
