3 / 4 Inch TP309S / 310S Heat Exchanger Tube , U Bend ERW Welded Tube

Thông tin chi tiết sản phẩm:
Place of Origin: CHINA
Hàng hiệu: MTSCO
Chứng nhận: ISO 9001 & PED & AD2000
Model Number: MTSCOHET37
Thanh toán:
Minimum Order Quantity: negotiable
Giá bán: 3700-9000USD/TON
Packaging Details: Plywood Case
Delivery Time: 30 Days
Payment Terms: T / T ; L / C
Supply Ability: 300 Tons / Month

Thông tin chi tiết

Material: 300 Series Surface: Pickling
U bent part surface: Annealing , Not Pickling Length: 18 m
Standard: ASTM A213 Inspection: 100%
Điểm nổi bật:

heat transfer tube

,

heat exchanger tubing

Mô tả sản phẩm

3 / 4 Inch TP309S / 310S Stainless Steel Heat Exchanger U Bend ERW Welded Tube


   Our heat exchanger tube with pickling and annealing surface is very popular in boilers and heat exchangers industry , water heater industry , air-conditioning industry etc . This kind of seamless tubes are have a very important position in our all products .

Chemical Composition


 C(max)Si(max)P(max)S(max)CrNiMo Ti
TP304/1.43010.0801.000.0450.03018.0-20.08.0-10.5
TP304L/1.43070.0351.000.0450.03018.0-20.08.0-12.0
TP304H/1.49480.04-0.101.000.0450.03018.0-20.08.0-12.0
TP316/1.44010.0801.000.0450.03016.0-18.011.0-14.02.0-3.0
TP316L/1.44040.0351.000.0450.03016.0-18.010.0-14.02.0-3.0
TP316Ti/1.45710.0801.000.0450.03016.0-18.010.0-14.02.0-3.00.7>5x(C+N)
TP321/1.45410.0801.000.0450.03017.0-19.09.0-12.0 0.7>5x(C+N)
TP317L/1.44490.0801.000.0450.03018.0-20.011.0-14.03.0-4.0
TP347H/1.49120.04-0.101.000.0450.03017.0-19.09.0-13.0
TP309S/1.48330.0801.000.0450.03022.0-24.012.0-15.00.75
TP310S/1.48450.0801.000.0450.03024.0-26.019.0-22.00.75




Application

a) For fluid & gas transport
b) Structure & machining etc
Advantages
a) Advanced technology of cold draw machine
b) Advanced annealing machine
c) Better mechanical property
d) More precise dimension
e) Perfect inspection method and inspection equipment etc

Process :

1 . We use Cold Drawn techonology to produce U bend tube
2 . U bend tubes produce will accordance to customer's drawings
3 . To avoid oxidation , inert gas (Argon) is passed through tubes ID at the required flow rate
4 . The radius is checked for its OD and wall thinning with the recommended specification
5 . We'll choose three different position or as customer's require to make sure tubes quality . We'll do physical properties and micro-structure test
6 . Visual inspection for waviness and cracks is done with Dye Penetrant Test
7 . Each tube is then hydro tested at the recommended pressure to check for leakage

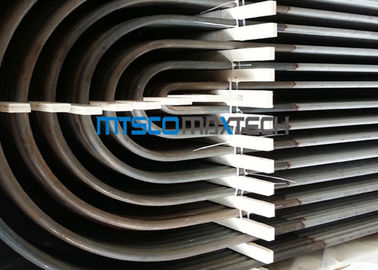

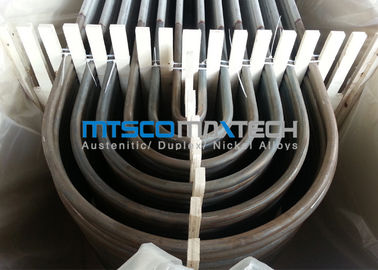

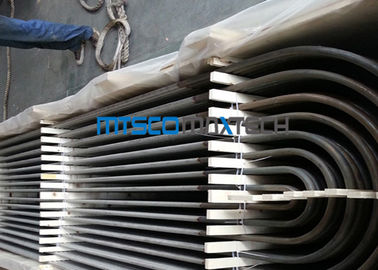

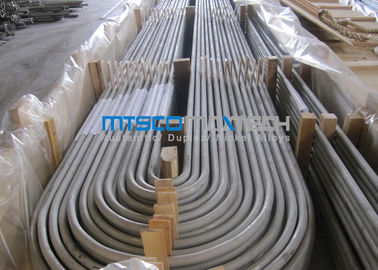

3 / 4 Inch TP309S / 310S Heat Exchanger Tube , U Bend ERW Welded Tube 0
