10 Inch Sch10s ASTM A790 S31803 / F51 Duplex Steel EFW Welded Pipe For Chemical Industry

Thông tin chi tiết sản phẩm:
Place of Origin: CHINA
Hàng hiệu: MTSCO
Chứng nhận: ISO 9001 & PED & AD2000
Model Number: MTSCOSSSP43
Thanh toán:
Minimum Order Quantity: negotiable
Giá bán: 2400-12000USD/TON
Packaging Details: Plywood Case / Bundles
Delivery Time: 30 Days
Payment Terms: T / T ; L / C
Supply Ability: 500 Tons / Month

Thông tin chi tiết

Material: S31803 / F51 NDT: Eddy current or Hydraulic test
Inspection: 100% Surface: Pickling
Length: 5800mm
Điểm nổi bật:

welded stainless steel pipe

,

welded stainless steel pipes

Mô tả sản phẩm

10 Inch Sch10s ASTM A790 S31803 / F51 Duplex Steel EFW Welded Pipe For Chemical Industry





ASTM A269 - 10 : Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service

ASTM A312 / A312M - 12 : Standard Specification for Seamless , Welded , and Heavily Cold Worked Austenitic Stainless Steel Pipes
ASTM A789 / A789M - 10a : Standard Specification for Seamless and Welded Ferritic / Austenitic Stainless Steel Tubing for General Service
ASTM A790 / A790M - 11 : Standard Specification for Seamless and Welded Ferritic / Austenitic Stainless Steel Pipe



UNS Designation C Si Mn P S Cr Ni Mo N Cu
max max max max max
S31803 0.03 1 2 0.03 0.02 21.0 - 23.0 4.5 - 6.5 2.5 - 3.5 0.08 - 0.20 -
S32205 0.03 1 2 0.03 0.02 22.0 - 23.0 4.5 - 6.5 3.0 - 3.5 0.14 - 0.20 -
S32750 0.03 0.8 1.2 0.035 0.02 24.0 - 26.0 6.0 - 8.0 3.0 - 5.0 0.24 - 0.32 0.5 max
S32760 0.05 1 1 0.03 0.01 24.0 - 26.0 6.0 - 8.0 3.0 - 4.0 0.20 - 0.30 0.50 -1.00

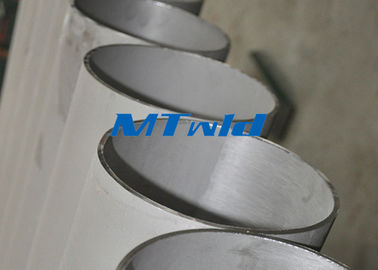

10 Inch Sch10s ASTM A790 S31803 / F51 Duplex Steel EFW Welded Pipe For Chemical Industry 0



Application :



1 . For fluid and gas transport

2 . Structure and machining

3 . Heat exchanger pipes etc



Advantages :



1 . Superior surface finish

2 . Better mechanical property

3 . More precise dimension

4 . Perfect inspection method and inspection equipment



Test :



1 . X-ray , Size test , Length test

2 . Chemical Analysis ( Photoelectric Emission Spectroscopic ) etc





Specifications :



DN NPS(Inch) D(mm) SCH5S SCH10S SCH40S STD SCH40 SCH80 XS SCH80S SCH160 XXS
6 1/8 10.30 - 1.24 1.73 1.73 1.73 2.41 2.41 2.41 - -
8 1/4 13.70 - 1.65 2.24 2.24 2.24 3.02 3.02 3.02 - -
10 3/8 17.10 - 1.65 2.31 2.31 2.31 3.20 3.20 3.20 - -
15 1/2 21.30 1.65 2.11 2.77 2.77 2.77 3.73 3.73 3.73 4.78 7.47
20 3/4 26.70 1.65 2.11 2.87 2.87 2.87 3.91 3.91 3.91 5.56 7.82
25 1 33.40 1.65 2.77 3.38 3.38 3.38 4.55 4.55 4.55 6.35 9.09
32 1 1/4 42.20 1.65 2.77 3.56 3.56 3.56 4.85 4.85 4.85 6.35 9.70
40 1 1/2 48.30 1.65 2.77 3.68 3.68 3.68 5.08 5.08 5.08 7.14 10.15
50 2 60.30 1.65 2.77 3.91 3.91 3.91 5.54 5.54 5.54 8.74 11.07
65 2 1/2 73.00 2.11 3.05 5.16 5.16 5.16 7.01 7.01 7.01 9.53 14.02
80 3 88.90 2.11 3.05 5.49 5.49 5.49 7.62 7.62 7.62 11.13 15.24
90 3 1/2 101.60 2.11 3.05 5.74 5.74 5.74 8.08 8.08 8.08 - -
100 4 114.30 2.11 3.05 6.02 6.02 6.02 8.56 8.56 8.56 13.49 17.12
125 5 141.30 2.77 3.40 6.55 6.55 6.55 9.53 9.53 9.53 15.88 19.05
150 6 168.30 2.77 3.40 7.11 7.11 7.11 10.97 10.97 10.97 18.26 21.95
200 8 219.10 2.77 3.76 8.18 8.18 8.18 12.70 12.70 12.70 23.01 22.23
250 10 273.10 3.40 4.19 9.27 9.27 9.27 15.09 12.70 12.70 28.58 25.40
