Nhà Sản phẩmỐng thép hàn không rỉ3 / 4 Inch ASTM A269 / A213 TP317 Welded Stainless Steel Tubing For Fluid And Gas

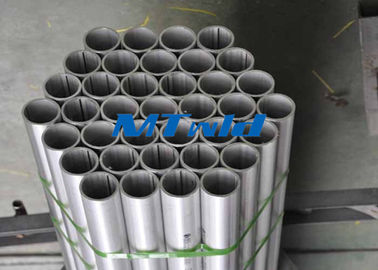

3 / 4 Inch ASTM A269 / A213 TP317 Welded Stainless Steel Tubing For Fluid And Gas
3 / 4 Inch ASTM A269 / A213 TP317 Welded Stainless Steel Tubing For Fluid And Gas 3 / 4 Inch ASTM A269 / A213 TP317 Welded Stainless Steel Tubing For Fluid And Gas 3 / 4 Inch ASTM A269 / A213 TP317 Welded Stainless Steel Tubing For Fluid And Gas 3 / 4 Inch ASTM A269 / A213 TP317 Welded Stainless Steel Tubing For Fluid And Gas
Liên hệ với bây giờ

3 / 4 Inch ASTM A269 / A213 TP317 Welded Stainless Steel Tubing For Fluid And Gas

Minimum Order Quantity : negotiable Giá bán : 2500-12000USD/TON
Packaging Details : Plywood Case / Bundles Delivery Time : 25 Days
Payment Terms : T / T ; L / C Supply Ability : 500 Tons / Month
Place of Origin: CHINA Hàng hiệu: MTSCO
Chứng nhận: ISO 9001 & PED & AD2000 Model Number: MTSCOSSWT36

Thông tin chi tiết
Material: TP317 Surface: 320 # Or 400 # Outside Polished
Delivery Condition: Soft / Hard Type: Welded
Process Method: ERW , EFW Etc PMI Test: 100%
Làm nổi bật:

welded stainless steel tubing

,

welding round tube

Mô tả sản phẩm

3 / 4 Inch ASTM A269 / A213 TP317 Stainless Steel Welded Tube For Fluid And Gas



1 . Grade : TP304 , TP304L , TP304H , TP316 , TP316L , TP316Ti , TP309S , TP310S , TP321 , TP321H , TP347 , TP347H , etc

2 . OD ( Outer Diameter ) : 5.80mm to 2032mm ( 0.23 inch to 80 inch )

3 . WT ( Wall Thickness ) : 0.25mm to 28mm ( 0.01 inch to 1.125 inch )

4 . Length : According to customer's requirement

5 . Standards : ASTM A312; ASTM A269; ASTM A789; ASTM A790 ect

6 . Process Method : ERW, EFW etc



Application

a) For fluid and gas transport

b) Structure and machining

c) Heat exchanger pipes etc

Advantages

a) Superior surface finish

b) Better mechanical property

c) More precise dimension

d) Perfect inspection method and inspection equipment

Price Item

FOB, CFR, CIF or as negotiation

Payment

T/T, LC or as negotiation

Delivery Time

30 working days after received your deposit (Normally according to the order quantity)

Package

Iron case; woven bag or as per customer’s requirement

Quality Requirement

Mill Test Certificate will be supplied with shipment, Third Part Inspection is acceptable

Test

X-ray, Size test, Length test

Chemical Analysis(Photoelectric Emission Spectroscopic) etc

Main Market

Europe, Middle East, Southeast Asia, South America. Etc





Size OD Nominal Wall Outside Diameter Length Wall
1/2" (12.7) 0.065" (1.65)/0.049" (1.25) +/-0.005 (0.13) +1/8" (3.18) - 0 +/-10.0%
3/4" (19.1) 0.065" (1.65)/0.049" (1.25) +/-0.005 (0.13) +1/8" (3.18) - 0 +/-10.0%
1" (25.4) 0.065" (1.65)/0.049" (1.25) +/-0.005 (0.13) +1/8" (3.18) - 0 +/-10.0%
1-1/2" (38.1) 0.065" (1.65)/0.049" (1.25) +/-0.008" (0.20) +1/8" (3.18) - 0 +/-10.0%
2" (50.8) 0.065" (1.65)/0.049" (1.25) +/-0.008" (0.20) +1/8" (3.18) - 0 +/-10.0%
2-1/2" (63.5) 0.065" (1.65) +/-0.010" (0.25) +1/8" (3.18) - 0 +/-10.0%
3" (76.2) 0.065" (1.65) +/-0.010" (0.25) +1/8" (3.18) - 0 +/-10.0%
4" (101.6) 0.083" (2.11) +/-0.015" (0.38) +1/8" (3.18) - 0 +/-10.0%
6" (152.4) 0.083" (2.11) +/-0.030" (0.76) +1" (25.4) - 0 +/-10.0%
6" (152.4) 0.109" (2.77) +/-0.030" (0.76) +1" (25.4) - 0 +/-10.0%
8" (203.2) 0.109" (2.77) +0.061" (1.55)/-0.031" (0.79) +1" (25.4) - 0 +/-10.0%





ASTM A269 Chemical Composition :



Elements 304L(wt%) S30403 304(wt%) S30400 316L (wt%) S31603 316 (wt%) S31600
(C) Carbon, max 0.035 0.08 0.035 0.08
(Mn) Manganese, max 2 2 2 2
(P) Phosphorus, max 0.045 0.045 0.045 0.045
(S) Sulfur, max 0.03 0.03 0.03 0.03
(Si) Silicon, max 1 1 1 1
(Ni) Nickel 8.0 - 12.0 8.0 - 11.0 10.0 - 14.0 10.0 - 14.0
(Cr) Chromium 18.0 - 20.0 18.0 - 20.0 16.0 - 18.0 16.0 - 18.0
(Mo) Molybdenum N/A N/A 2.0 - 3.0 2.0 - 3.0
(Fe) Iron Bal. Bal. Bal. Bal.
(Cu) Copper N/A N/A N/A N/A
(N) Nitrogen N/A N/A N/A N/A



3 / 4 Inch ASTM A269 / A213 TP317 Welded Stainless Steel Tubing For Fluid And Gas 0
