ASTM A269 / ASME SA269 TP321 / 321H Stainless Steel Instrument Tubing , Thickness 0.5-20mm

Minimum Order Quantity : negotiable Giá bán : 4300-9800USD/TON
Packaging Details : Iron Case / Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA Hàng hiệu: MTSCO
Chứng nhận: ISO 9001 & PED & AD2000 Model Number: MTSCOSSIT42

Thông tin chi tiết

Material: TP321 / 321H Type: Seamless
Condition: Soft / Hard Surface: Bright Annealed
Length: 6400.8mm Technology: Cold Drawn
Làm nổi bật:

stainless steel instrumentation tubing

,

Cold Drawn Tubing

Mô tả sản phẩm

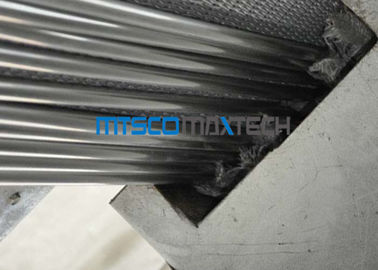

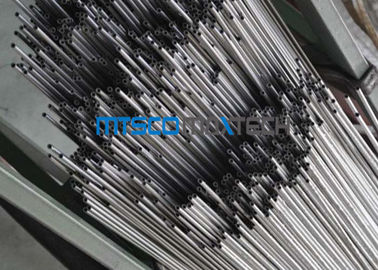

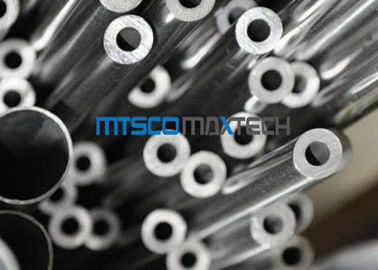

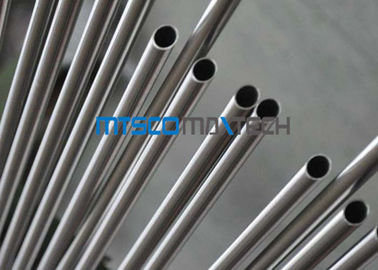

ASTM A269 / ASME SA269 TP321 / 321H Stainless Steel Seamless Instrument Tubing





Stainless steel seamless bright annealed tube’s final surface is polished and bright annealed . And the polished grade is includes 180# , 320# , 400# , 600# , 800# . According to standard very strictly , tubes which produced by us always have correct OD and WT tolerance . At instrument industry , bright annealed tubes have their own important position .



Material Grade: TP304 , TP304L , TP304H , TP316 , TP316L , TP316Ti , TP309S , TP310S , TP321 , TP321H , TP347 , TP347H , S31803 , S32750 , S32205 etc

Outer Diameter: 3.18-101.6mm

Wall Thickness: 0.5-20mm

Length: Normally fixed length 6m , can as per customer’s requirement

Standard: ASTM A213 ; ASTM A269 ; ASTM A312 ; ASTM A789 ; ASTM A790 ect .

Process Method: Cold Drawn or Cold Rolled



Chemical Composition



  C(max) Si(max) Mn(max) P(max) S(max) Cr Ni Mo Ti
TP304/1.4301 0.080 1.00 2.00 0.045 0.030 18.0-20.0 8.0-10.5
TP304L/1.4307 0.035 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP304H/1.4948 0.04-0.10 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP316/1.4401 0.080 1.00 2.00 0.045 0.030 16.0-18.0 11.0-14.0 2.0-3.0
TP316L/1.4404 0.035 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0
TP316Ti/1.4571 0.080 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0 0.7>5x(C+N)
TP321/1.4541 0.080 1.00 2.00 0.045 0.030 17.0-19.0 9.0-12.0   0.7>5x(C+N)
TP317L/1.4449 0.080 1.00 2.00 0.045 0.030 18.0-20.0 11.0-14.0 3.0-4.0
TP347H/1.4912 0.04-0.10 1.00 2.00 0.045 0.030 17.0-19.0 9.0-13.0
TP309S/1.4833 0.080 1.00 2.00 0.045 0.030 22.0-24.0 12.0-15.0 0.75
TP310S/1.4845 0.080 1.00 2.00 0.045 0.030 24.0-26.0 19.0-22.0 0.75



ASTM A269 / ASME SA269 TP321 / 321H Stainless Steel Instrument Tubing , Thickness 0.5-20mm 0



Industry & Advantage Application a) General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear )
b) Fluid , gas and oil transport
c) Pressure and heat transmission
d) Construction and ornament
e) Boiler and heat exchangers
f) Decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium )
Advantages a) Superior surface finish
b) Better mechanical property
c) More precise dimension
d) Perfect inspection method and inspection equipment







Welcome everyone who need this kind of pipes contact to me in free . Also MTSCOMAXTECH can produce stainless steel seamless pipes, bright annealed tubes, seamless coiled tubing etc . You go ahead one step , we can help you creat more profits than your mind .
